Orbit



Aluminium Framed Screen

Overview



This unique mobile, modular screen system called Orbit promotes movement and style within any environment. For today’s collaborative environments it’s adaptable & scalable. Orbit is manufactured in a range of sizes and shapes to suit your needs. Naturally, it’s everything you’d expect: demountable; environmentally responsible; reconfigurable, expandable and endlessly versatile. But, in today’s market, those are simply the minimum requirements. What sets Orbit apart from all other systems is its quality.

Specification



■ 45mm x 75mm profile

■ Standard heights of 1200mm, 1600mm & 1800mm

■ Standard widths of 800mm, 1000mm, 1200mm or 1600mm

■ Choice of surface finishes - fabric, dry wipe, laminate, acrylic, wood or glass

■ Mobile or static versions

■ Management rail available - position can be at any height

■ Curved screen options available - radii 1200mm

■ Acoustic & Pinnable versions are available

■ Bespoke sizes and configurations are available











For a printable copy of this webpage please click on the PDF icon shown to the right.

Images

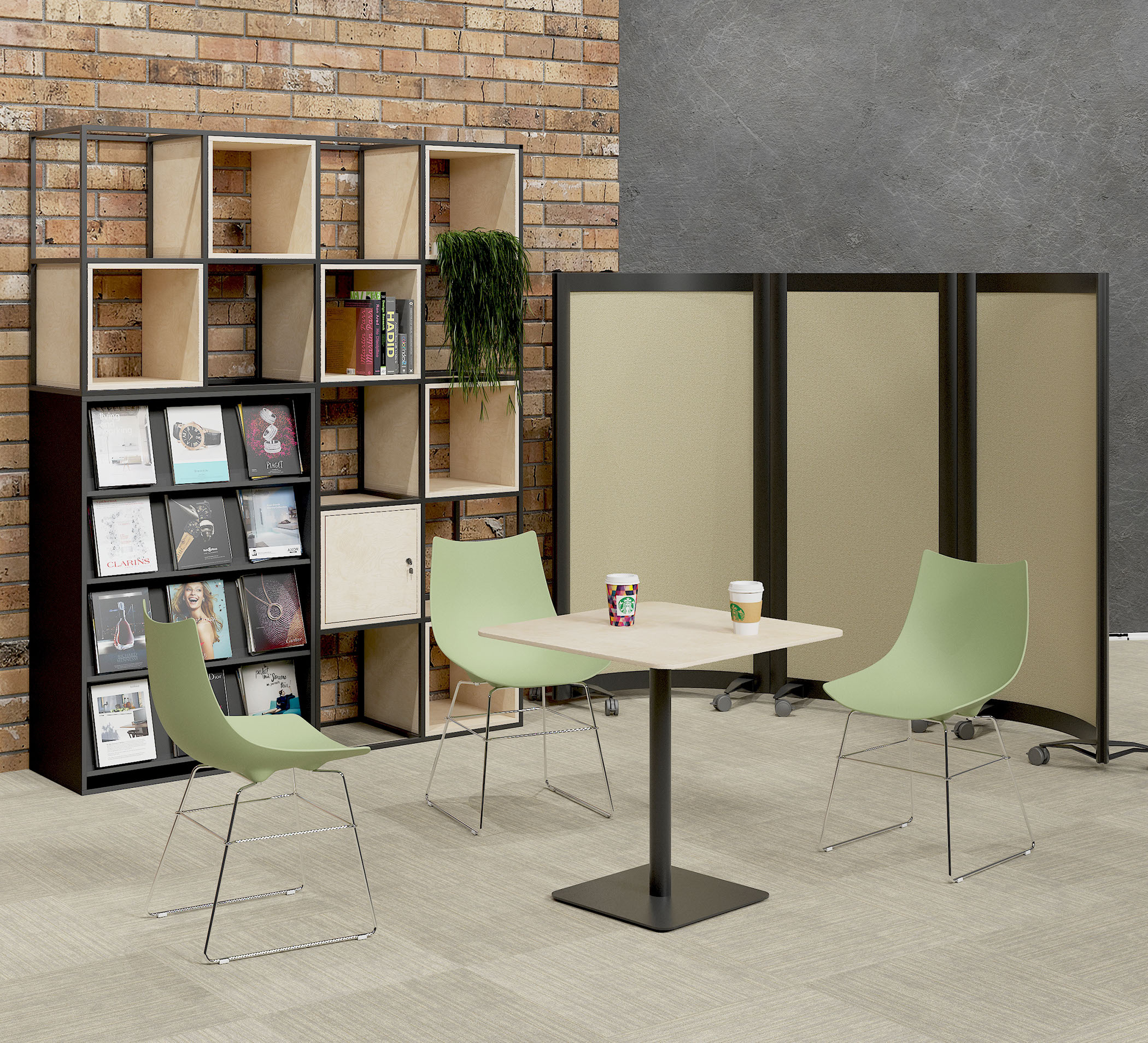

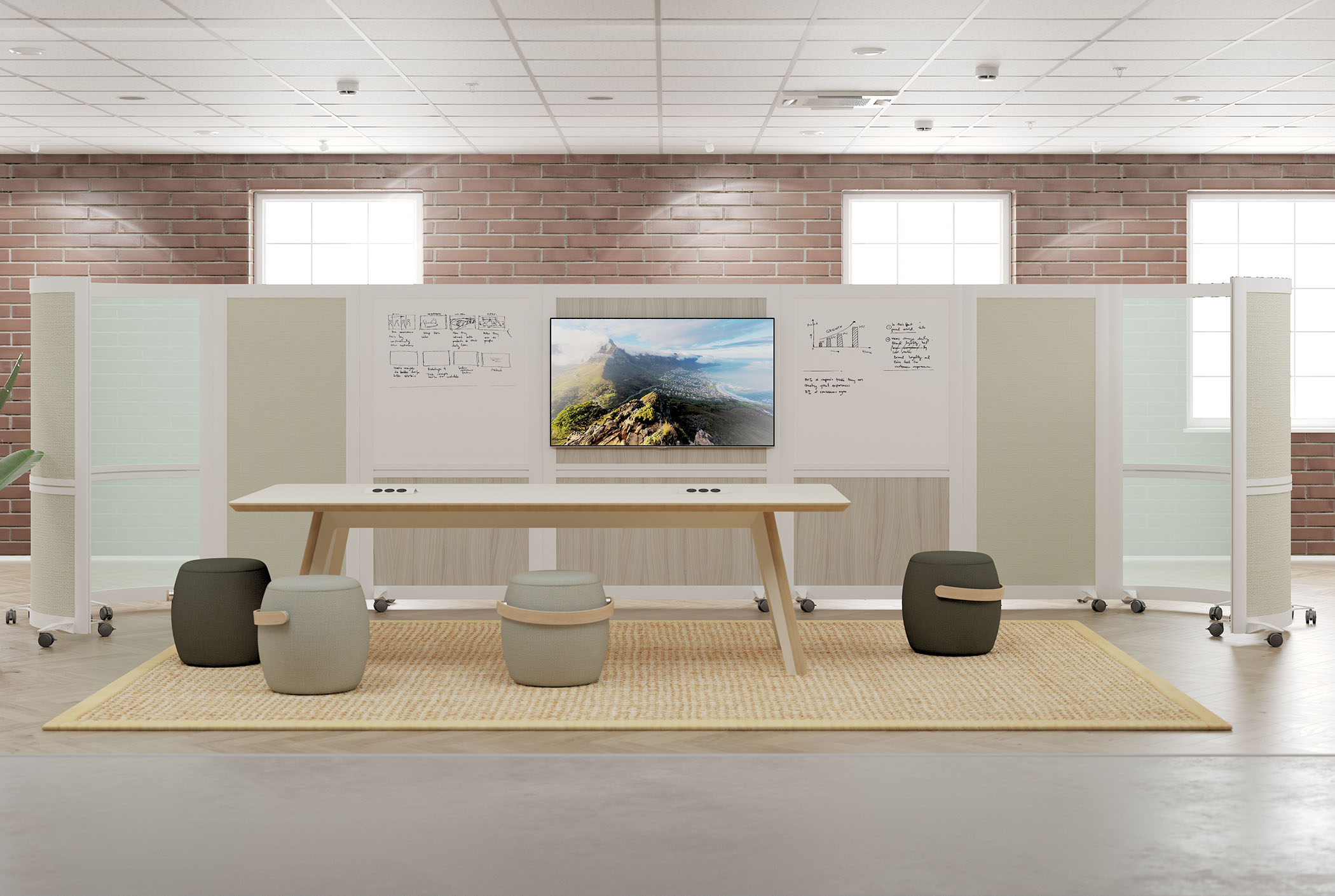

The Orbit screen range is available in a number of styles and shapes, see the images below.

Sizes







800mm wide

1000mm wide

1200mm wide

1600mm wide





FABRIC (1200mm)

MOBILE

OB/PS1208FM

OB/PS1210FM

OB/PS1212FM

OB/PS1216FM





LAMINATE (1600mm)

MOBILE

OB/PS1608LM

OB/PS1610LM

OB/PS1612LM

OB/PS1616LM





ACRYLIC (1800mm)

STATIC

OB/PS1808AS

OB/PS1810AS

OB/PS1812AS

OB/PS1816AS









800mm wide

1000mm wide

1200mm wide

1600mm wide





DRYWIPE (1200mm)

CURVED

OB/PS1208DC

OB/PS1210DC

OB/PS1212DC

OB/PS1216DC





ACRYLIC (1200mm)

MOBILE

OB/PS1208AM

OB/PS1210AM

OB/PS1212AM

OB/PS1216AM





LAMINATE (1200mm)

STATIC

OB/PS1208LS

OB/PS1210LS

OB/PS1212LS

OB/PS1216LS

Options



■ Fabric Mobile (FM)

Fabric Static (FS)

■ Fabric Curved (FC)





■ Drywipe Mobile (DM)

■ Drywipe Static (DS)

■ Drywipe Curved (DC)





■ Laminate Mobile (LM)

■ Laminate Static (LS)

■ Laminate Curved (LC)





■ Acrylic Mobile (AM)

■ Acrylic Static (AS)

■ Acrylic Curved (AC)

Finishes



Aluminium framework can be supplied in black, silver or white epoxy paint finish.

B

K

W

Orbit can be supplied in fabric, MFC, laminate, dry wipe, magnetic, acrylic, glass, acoustic & pinnable.

Fabrics



ALL contract grade screen specific fabrics can be used on our products - please contact us for details.

Standards



Orbit screens have been tested and comply with the following standards:



■ EN 1023-1:1997

■ EN 1023-2:2000

■ EN 1023-3:2000

Shapes

FABRIC

DRYWIPE

WOOD

ACRYLIC

FABRIC

DRYWIPE

WOOD

ACRYLIC

FABRIC

DRYWIPE

WOOD

ACRYLIC

FABRIC

DRYWIPE

WOOD

ACRYLIC
